< How it Began as N/A

< Cold Air intake to Throttle Body

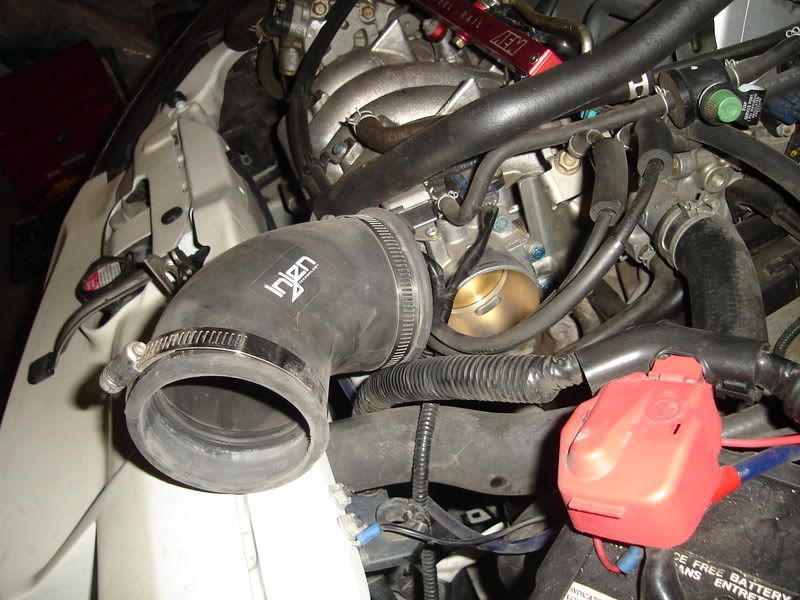

< CAI Elbow to TB removed

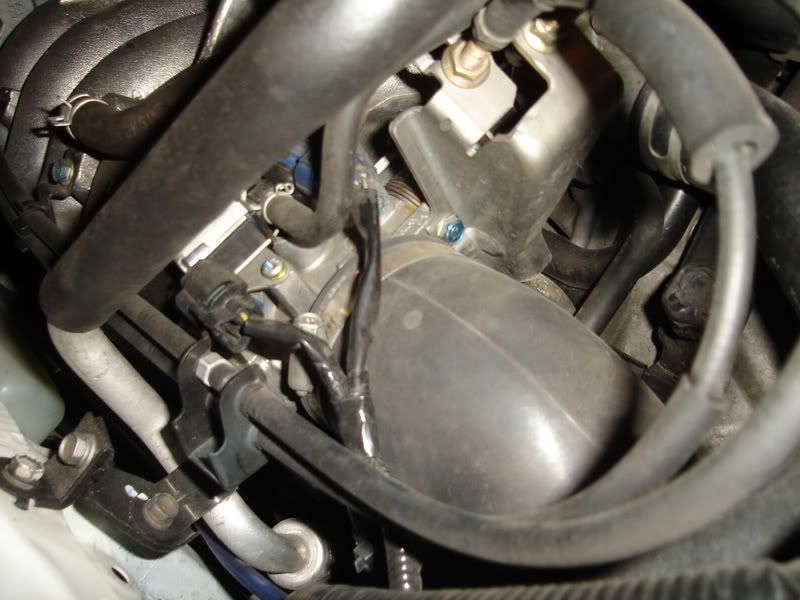

< CAI Piping covered to prevent coolant spilling into it

< Undo all hoses attached to intake manifold

< Bleed Fuel Rail

< Fuel Rail removed with new RC 750cc injectors installed

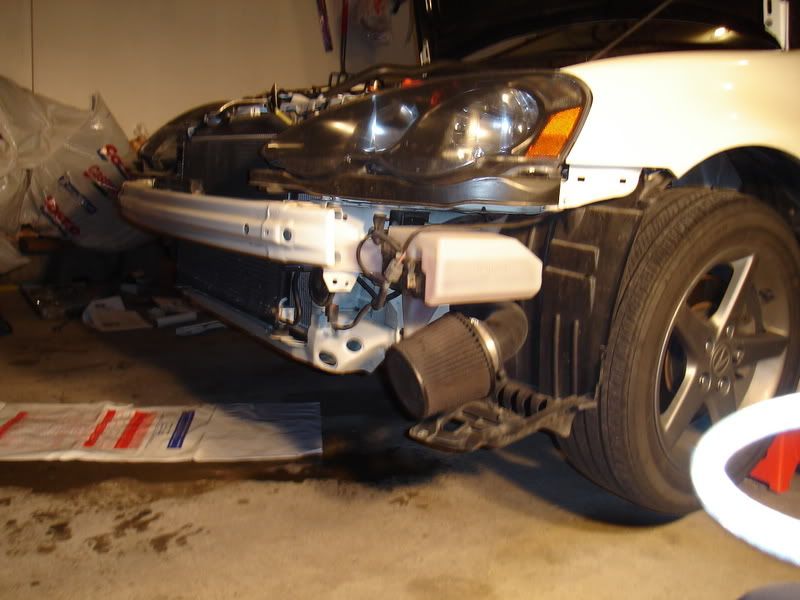

< Front Bumper removed

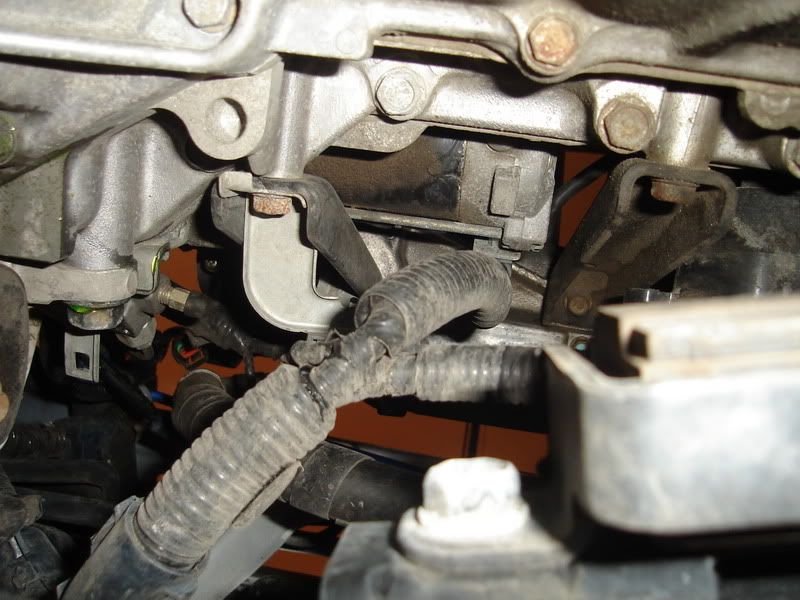

< Bracket holding the Intake Manifold from underneath

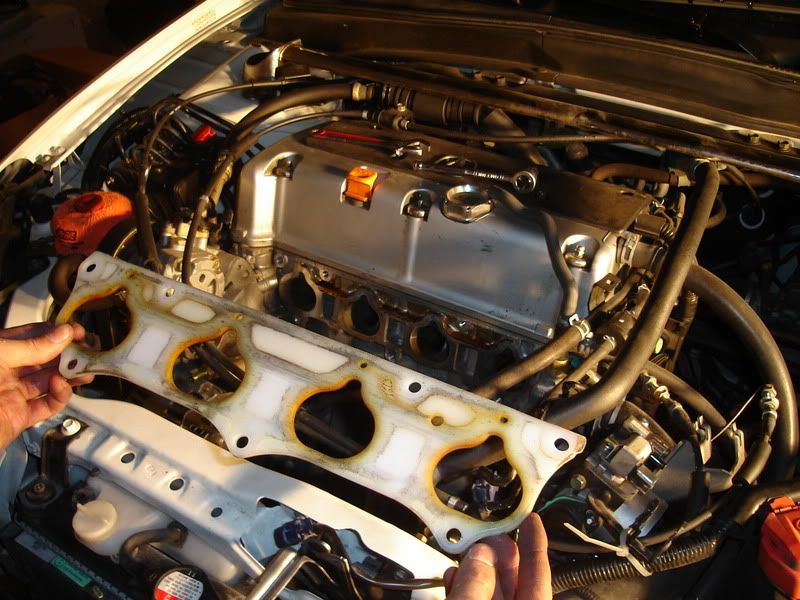

< Intake Manifold removed, Hondata IMG shown


·
Supercharged Crew #37
Joined
·
1,350 Posts
Discussion Starter · #2 ·
< Removing Power Steering Pulley (*Ghetto Style)

< 2nd picture of Ghetto Rigging a Pulley remover

< P/S Nut removed

< P/S pulley removed

< Removing my mugen passenger motor mount

< bird eye view of motor mount

< Motor Mount removed

< Trimming the headlights for space

< Trimming completed

< Auto tensioner Removed


·
Supercharged Crew #37
Joined
·
1,350 Posts
Discussion Starter · #3 ·
< How it looks at this point

< Front shot

< Out comes the alternator

< alternator removed

< Removing the bolts from A/C compressor to fit spacers

< without upper spacer installed

< with upper spacer installed

< Without lower spacer

< With lower spacer installed

< Side view


·
Supercharged Crew #37
Joined
·
1,350 Posts
Discussion Starter · #4 ·
< alternator spacers installed

< alternator spacers installed

< adjusted ground wire on starter under plastic cover

< alternator re-installed

< blower + manifold assembly installed

< Tensioner bracket installed

< motor mount re-installed

< Replacement power pulley installed

< Belt routing

< Belt route around manual Tensioner


·
Supercharged Crew #37
Joined
·
1,350 Posts
Discussion Starter · #5 · (Edited)
< Harness clip holders needs cutting

< blower manifold support mount

< Arm attached to support mount and engine

< Arm installed

< New NGK Iridium Spark plugs

< New injector clips installed

< old clips snipped off, new clips soldered

< MSD 3 map bar sensor w/ Piggy back harness

< Zip-tied to frame

< Finished project, ended up boosted!!! Note the hose that connects from the nipple by the throttle body to the nipple behind the fuel rail is incorrect, this hose should connect from the nipple by the TB to the bypass valve. My bypass was broken, so that was my temp. solution to avoid vaccum leak)


·
